aluminium circle 1060 for cookware
Alloy 5083 aluminum have higher strength than 5052 and has exceptional thermal conductivity. In the tempered condition, it retains good formability due to excellent ductility. It is highly suitable for welding and can be hardened by cold work. Because Alloy 5083 exhibits excellent resistance to general corrosion, it is used in marine applications. Since Alloy 5083 is capable of withstanding extremely low temperatures without brittleness or loss of properties, it is especially suited to the cryogenic market.
Features of our 5083 coil
a. In not heat treated alloy strength,
b. good corrosion resistance,
c. good machinability,
d. arc welding performance is good,
e. the anode surface is beautiful.

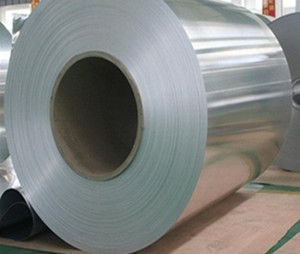

5083 Aluminium coil details
Regular Temper: H116,H321,H111,H112,HO,H32,H34,H38,H19
Thickness: 0.8mm-6.0mm
Width: 800mm-1700mm
Product Standards: GBT ,JIS4000, EN485, ASTM928,ASTMB209
Surface: clean and smooth, no bright speck, corrosion, oil, slotted, etc.
Package: export standard package, wooden pallet with fumigation. Eye to sky or eye to wall.
Lead Time: about 35days after receiving the deposit.
CO Type: We can supply the Form E, Form A, CO etc.
Chemical composition of 5083 aluminium coil
|
|
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
|
GB/T3190-2008 |
0.40 |
0.40 |
0.10 |
0.40-1.0 |
4.0-4.9 |
0.05-0.25 |
0.25 |
0.15 |
REM. |
|
INNER QUALITY STANDARD |
0.15-0.25 |
0.2-0.33 |
0.03-0.07 |
0.45-0.6 |
4.2-4.7 |
0.1-0.2 |
0.15 |
0.015-0.03 |
REM. |
Mechanical Properties of aluminium coil 5083 H321
|
Temper&Thickness |
Tensile strength Mpa |
Yield strength Mpa |
Elongtion % |
|
H116/T:1.0-40mm |
min305 |
min215 |
min8 |
|
H116/T:＞40mm |
min285 |
min200 |
max10 |
|
H321/T:1.0-40mm |
min305 |
min215 |
min8 |
|
H321/T:＞40mm |
min285 |
min200 |
max10 |
